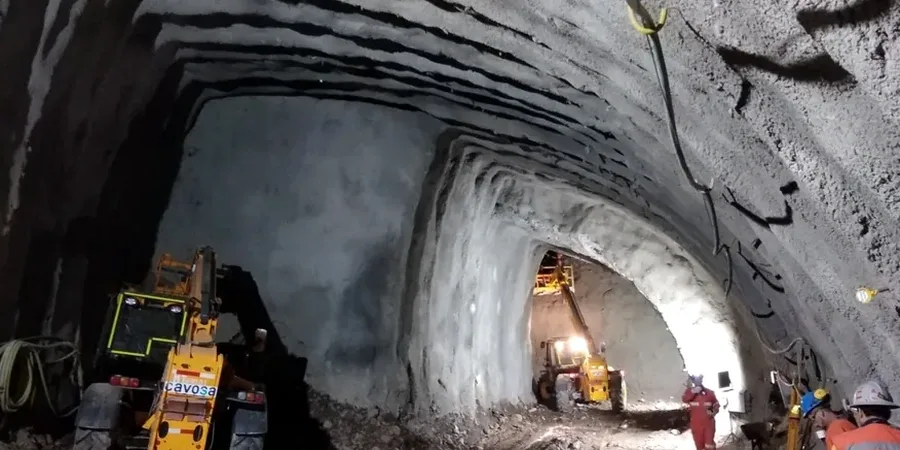

A tunnel boring machine stalled for three days under the West Bottoms in Kansas City back in 2018. The cause wasn't mechanical failure. It was a lens of saturated, uncompacted alluvium that the bore log missed. The contractor lost face pressure control and the crown settlement exceeded design limits by 40 mm. We got the call at 2 a.m. on a Saturday. In soft ground tunneling, the geotechnical baseline report isn't a formality, it is the single document that keeps the TBM moving and the street above intact. Our team runs the analysis that feeds that report: index tests, triaxial CU and CD suites on Shelby tube samples, and pore pressure dissipation curves from CPT testing across the alignment. When the ground is unpredictable, the data has to be bulletproof.
In Kansas City alluvium, face support pressure isn't a fixed number. It's a function of pore pressure response that changes every 50 feet along the drive.
Our approach and scope
Local considerations
ASCE 7 and the IBC require that tunnel designs in Kansas City account for the 2,475-year seismic event. The Missouri River alluvium has a Vs30 typically between 180 and 250 m/s, which classifies as Site Class E or F depending on depth to bedrock. In a seismic event, cyclic softening of the saturated silts can trigger a sudden loss of face pressure and crown collapse, even at shallow cover. We run cyclic triaxial tests on undisturbed samples to quantify the pore pressure buildup under the design earthquake acceleration. The biggest mistake we see is running the seismic analysis on the soil's drained strength. In soft ground below the water table, the undrained response governs. We deliver the cyclic strength ratio, the post-cyclic volumetric strain, and the minimum face pressure envelope that keeps the heading stable during and after shaking.
Relevant standards
ASCE 7-22 Minimum Design Loads and Associated Criteria, IBC 2021 Chapter 18 Soils and Foundations, ASTM D1586 Standard Test Method for Standard Penetration Test (SPT), ASTM D4767 Standard Test Method for Consolidated Undrained Triaxial Compression Test for Cohesive Soils, FHWA-NHI-10-034 Technical Manual for Design and Construction of Road Tunnels
Associated technical services
Geotechnical Baseline Report (GBR) preparation
We compile the factual data, interpret the ground behavior, and define the baseline parameters that govern Differing Site Conditions claims. Every parameter is traceable to a specific borehole and lab test.
Face stability and support pressure analysis
We calculate the required EPB or slurry pressure profile along the drive using limit equilibrium methods (Anagnostou & Kovári, 1996) calibrated with site-specific strength and permeability data.
Settlement and volume loss assessment
We predict the surface settlement trough using the Gaussian curve method, backed by consolidation and triaxial test data that define the volume loss parameter (VL) for the local alluvium.
Seismic soil-tunnel interaction analysis
We run cyclic lab tests and 1D site response analysis to determine the ovaling and racking deformation of the tunnel lining under the design earthquake, per FHWA and ASCE guidelines.
Typical parameters
Quick answers
What does a geotechnical analysis for a soft ground tunnel in Kansas City typically cost?
The fee ranges from US$4,140 for a targeted lab program on a short alignment to US$16,450 for a full GBR with cyclic testing, CPT, and settlement analysis covering a longer drive. The scope depends on the number of boreholes, the TBM type, and whether seismic interaction analysis is required.
Which lab tests are essential for soft ground tunnel design in the Missouri River alluvium?
We run CU and CD triaxial tests at in-situ stress levels, one-dimensional consolidation tests to define Cc and cv, grain size distributions for filter cake design, and Atterberg limits for face conditioning. If the alignment is in a seismic zone, cyclic triaxial tests on undisturbed samples are mandatory to quantify the undrained strength loss.
How do you handle mixed-face conditions where the TBM transitions from alluvium into rock?
We test both materials separately: CU triaxial on the soil and unconfined compression with triaxial on the rock core. We define the strength ratio between the two materials at the face. We then analyze the risk of blocky face collapse where the softer alluvium washes out around the harder rock fragments. Cutter wear and TBM thrust requirements are adjusted based on the percentage of rock in the face.
