Rigid Pavement Design for Kansas City: Concrete That Handles Freeze-Thaw and Heavy Clay

Kansas City’s infrastructure grew from its role as a railroad hub on the Missouri River bluffs, where early engineers had to contend with steep grades and plastic clays. Those same challenges now affect modern concrete pavements. When a rigid pavement fails here, it is rarely the concrete itself. The culprit is almost always the subgrade. We design rigid pavements that account for Kansas City’s specific environmental loading: deep frost penetration in winter, saturated clay expansion in spring, and summer heat that curls slabs at the joints. Our laboratory follows the Portland Cement Association (PCA) method and the AASHTO 1993/1998 design guide, and we validate every input parameter with in-situ testing. Before a cubic yard of concrete is poured, we have already run CBR road testing on the subgrade and grain size analysis on the base material to verify permeability and drainage coefficients.

A rigid pavement in Kansas City lives or dies by its joint design and subgrade stiffness, not by the concrete compressive strength.

Our approach and scope

In Kansas City, we often see designers spec a uniform 8-inch slab across a site, but that ignores the transition zones between loess-covered uplands and alluvial bottomlands. A rigid pavement on the Lexington-Wolf Creek floodplain behaves entirely differently than one on the glacial till of the Northland. Our rigid pavement design process starts with a forensic look at the subgrade: we measure the modulus of subgrade reaction (k-value) because relying on assumed values from county soil surveys leads to under-designed slabs and costly joint faulting. We also model the temperature differential across the slab thickness, which matters in a city where winter lows drop to 20°F and summer highs exceed 90°F. For projects where the subgrade shows low bearing capacity, we integrate a stone columns ground improvement layer beneath the pavement to prevent differential settlement at approach slabs and loading docks.

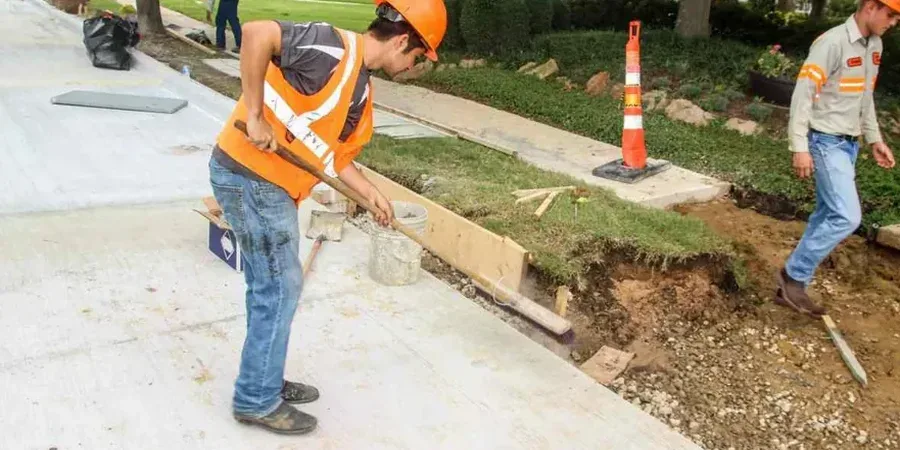

Rigid Pavement Design for Kansas City: Concrete That Handles Freeze-Thaw and Heavy Clay

Local considerations

Kansas City sits at an elevation around 910 feet, straddling the Missouri-Kansas line, and its rigid pavements face a unique threat: volume change in the underlying shale and clay. The city contains expansive soil units mapped by the USGS that can swell up to 10 percent with moisture, and when that swelling lifts a concrete slab, it creates faulted joints and corner breaks. The risk to a project owner is not theoretical. A distribution center in the Northland spent over a year litigating pavement failures traced to an un-stabilized subgrade. We mitigate this by specifying a moisture-conditioned subbase, designing edge drains for rapid water removal, and selecting an appropriate joint sealant to prevent infiltration. The liquefaction potential of saturated silts near the Missouri River is also a consideration for heavy-haul routes, even though it is not the primary design driver for most commercial pavements in the metro.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering1.org

Relevant standards

ASTM C78 / C78M: Flexural Strength of Concrete, AASHTO Guide for Design of Pavement Structures (1993/1998), ASTM D1196 / D1195: Non-Repetitive and Repetitive Static Plate Load Tests, Portland Cement Association (PCA): Concrete Pavement Design Manual, IBC Chapter 18: Soils and Foundations

Associated technical services

Subgrade k-value Determination

We run in-situ plate load tests and correlate with laboratory CBR values to establish the modulus of subgrade reaction for your Kansas City site. No assumed textbook values.

Joint Layout & Reinforcement Design

We calculate joint spacing, tie bar size, and dowel bar diameter to control cracking from thermal contraction and load transfer in saw-cut contraction joints.

Life-Cycle Cost Analysis

We compare initial construction cost against 30-year maintenance, factoring in Kansas City freeze-thaw cycles and truck traffic growth rates from regional freight corridors like I-35 and I-70.

Typical parameters

Parameter	Typical value
Design Method	PCA Method / AASHTO 93 & 98
Subgrade Input	Modulus of Subgrade Reaction (k-value), pci
Concrete Flexural Strength	Modulus of Rupture (MR), tested per ASTM C78
Load Transfer	Aggregate interlock and dowel bar design
Terminal Serviceability	pt = 2.5 (major highways) to 2.0 (industrial lots)
Frost Protection	Base course thickness meets Kansas City frost depth requirements
Joint Spacing	Calculated per PCA joint design criteria to control cracking

Quick answers

What is the typical cost range for rigid pavement design in the Kansas City area?

For a commercial or industrial rigid pavement design in Kansas City, the engineering fee typically ranges from US$1,740 to US$7,200 depending on site size, traffic loading (ESALs), and the number of borings required. A small parking lot is at the lower end; a heavy-duty truck terminal with multiple design sections and drainage plans is at the upper end.

Why does rigid pavement design in Kansas City need to consider freeze-thaw cycles?

Kansas City experiences 50 to 60 freeze-thaw cycles per winter. When water trapped in the base or subgrade freezes, it expands and can heave the slab. Proper base drainage and non-frost-susceptible material selection prevent this.

How do you determine the right slab thickness for a project?

We use the AASHTO and PCA methodologies, which require the subgrade k-value, concrete flexural strength, and traffic projections. We do not guess: we test the soil and model the load repetitions to avoid both fatigue cracking and excessive thickness that wastes budget.

Can you design rigid pavement over the expansive clays common in Kansas City?

Yes. We specify a moisture-conditioned subgrade, often with a lime-treated or cement-stabilized layer, plus a free-draining base course to isolate the slab from volume changes in the underlying clay.
