Raft / Mat Foundation Design in Kansas City

Kansas City’s expansion eastward from the bluffs of the Missouri River placed early warehouses on limestone ledges that barely moved. That same Silurian and Pennsylvanian bedrock still governs the deep side of our bearing stratum, but the upland clays west of Troost Avenue tell a completely different story. Today a mat foundation project starts with the boring logs, not with the structural layout. We run the consolidation curves on Shelby tube samples from the glacial till zone. The design thickness and reinforcement of the raft follow directly from the differential settlement analysis. When the clay is stiff and the rock is shallow, the mat becomes a rigid plate distributing column loads across the entire footprint. For sites near the Missouri River floodplain we pair the grain-size data with soil compressibility values to calibrate the subgrade reaction modulus before a single reinforcing bar is detailed.

A mat foundation in Kansas City must bridge stiff limestone and soft residual clay within the same footprint — the design criterion is angular distortion, not total settlement.

Our approach and scope

At the downtown loop elevation—roughly 910 feet above sea level—the transition from residual clay to limestone can occur within three vertical feet. That abrupt stiffness contrast is the single biggest variable we program into a raft foundation model. We obtain undisturbed samples through mud-rotary drilling and measure Atterberg limits with ASTM D4318. The modulus of subgrade reaction, k₁, is reduced in the clay lenses and raised over the rock dome, producing a non-uniform bearing profile. Finite element runs then determine the mat thickness required to keep angular distortion below 1/500 for standard framed construction. Wherever the upper shale layer is weathered and friable, we request a plate-load-test to verify the design bearing pressure directly in the excavation bench. The steel schedule of the mat, including top and bottom mats, is sized for the resulting bending moments plus the temperature and shrinkage steel mandated by ACI 318. All concrete mix designs specify a maximum water-cement ratio of 0.50 and a sulfate-resistant cement type for the low-pH groundwater common in Wyandotte and Johnson County strata.

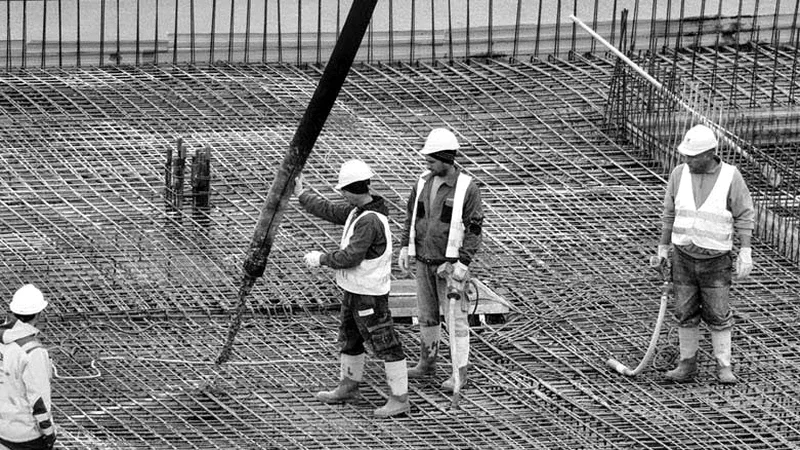

Raft / Mat Foundation Design in Kansas City

Local considerations

Between the Armourdale bottoms and the Sunset Hill bluffs, the bearing material changes from 30 feet of compressible alluvium to weathered shale within half a mile. A raft placed over the alluvium without ground improvement will tilt if the thickness is not sized for the long-term consolidation differential. We measure that differential directly from oedometer tests on thin-walled tube samples taken at each boring location. The second risk is perched groundwater in the loess-covered uplands east of State Line Road. Even a six-inch rise in the seasonal water table softens the clay contact and reduces the allowable bearing pressure by 20 to 30 percent. The mat design therefore includes a capillary break and a perimeter drain system. The third risk is structural: a rigid raft on a non-uniform bearing profile attracts higher moments in the transition zone, where the subgrade reaction modulus steps by an order of magnitude. That zone is reinforced with additional bottom bars to prevent flexural cracking under service loads.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering1.org

Relevant standards

IBC 2021, ASCE 7-22, ACI 318-19, ASTM D4318-17e1, ASTM D2435/D2435M-11(2020), ASTM D1194-94 (plate load reference)

Associated technical services

01

Subsurface investigation for mat design

Continuous SPT sampling, Shelby tube recovery in clay strata, and rock coring with NX-size barrels to map the limestone top-of-rock elevation across the building footprint. Seismic cross-hole testing in the overburden when shear-wave velocity is required for soil-structure interaction models.

02

Geotechnical parameter report

Modulus of subgrade reaction profile, allowable bearing pressure map, consolidation settlement versus time curves, and lateral earth pressure coefficients for the basement walls. All parameters are reduced by the resistance factors specified in ASCE 7-22 for strength design.

03

Concrete and reinforcement specification

Exposure class, minimum cementitious content, maximum w/c ratio, and sulfate-resistance requirements based on groundwater chemistry. Reinforcement schedule, bar size, spacing, and development length conforming to ACI 318 chapter 25 for mat foundations.

Typical parameters

ParameterTypical value
Design standardIBC 2021, ASCE 7-22, ACI 318-19
Bearing stratum in downtown loopLimestone / residual clay transition
Maximum angular distortion1/500 (framed structures)
Subgrade reaction modulus (k₁)Measured via plate load test or correlated from N₆₀
Concrete exposure classSulfate class S1 / S2 per ACI 318
Minimum cylinder strength (f’c)4,000 psi (28-day)
Steel gradeASTM A615 Grade 60

Quick answers

When does a Kansas City project require a mat foundation instead of isolated footings?

The switch to a mat is driven by three conditions we see frequently in this area: when the allowable bearing pressure drops below 2,000 psf in the fat clays, when the column spacing is tight and the individual footing excavations would overlap, or when the site sits directly over the bedrock-clay transition and differential settlement must be controlled. The mat integrates the entire footprint into a single rigid element.

What is the typical cost range for a raft/mat foundation design in Kansas City?

For a mid-size commercial or multi-family building, the geotechnical investigation, laboratory testing, and mat foundation design package typically falls between US$900 and US$3.660, depending on the number of borings and the complexity of the soil profile. A site with highly variable rock depth requires more sampling and analysis.

How do you determine the modulus of subgrade reaction for the mat design?

We derive it from one-dimensional consolidation tests on undisturbed clay specimens and from pressuremeter or plate load test data on the weathered rock. The value is adjusted for the mat size and shape using the Vesic formulation, which accounts for the foundation rigidity and the elastic properties of the upper 30 feet of subgrade.

Does the Missouri River flood level affect the mat foundation design?

Yes, especially for sites within the 100-year floodplain. The design hydrostatic pressure is applied as an uplift force on the mat underside. We add a buoyancy check and, when required, specify a pressure relief system or increase the dead load to achieve a factor of safety of 1.5 against flotation under the design flood elevation.

What laboratory tests are essential for the mat design?

The core suite includes natural moisture content, Atterberg limits, one-dimensional consolidation, unconsolidated-undrained triaxial compression on clay samples, and unconfined compression on rock cores. When sulfate attack is a concern, we run water-soluble sulfate content on groundwater samples per ASTM D516 to classify the exposure and select the cement type.
