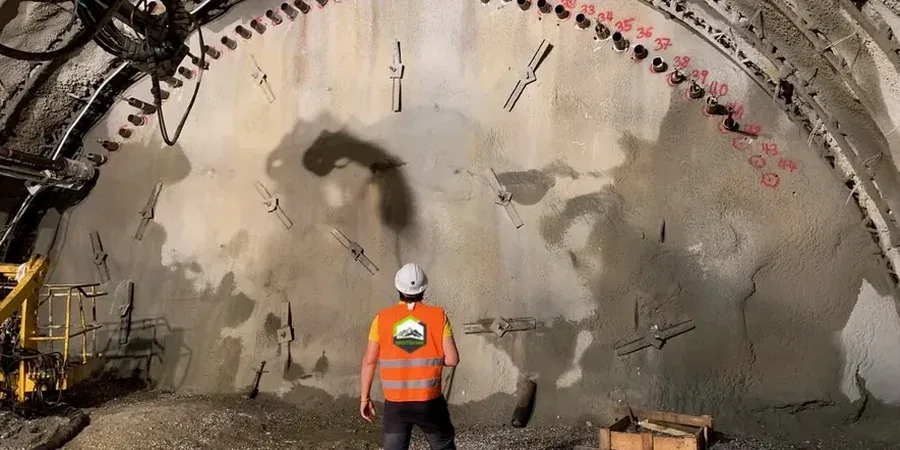

Kansas City sits on a geological sandwich—hard limestone ledges interrupted by soft shale and fat clay layers that swell with the Missouri River's seasonal rise. When you open an excavation through that mix, the ground doesn't wait for a design review meeting. Our team has tracked wall deflections in the West Bottoms during spring saturation when pore pressures climb fast, and we've seen how quickly a clean cut can turn into a sloughing problem. We don't just install instruments; we read the ground daily and tell you what it's doing before the Friday progress report. For sites where the weathered shale contact dips toward the cut, we often combine inclinometer arrays with a slope stability assessment to confirm the bench geometry holds through wet weather cycles.
An excavation doesn't collapse at noon on a Tuesday. It moves for three days before anyone notices—unless you're watching.
Our approach and scope
Local considerations
The biggest gamble in Kansas City excavation isn't hitting rock—it's hitting groundwater where nobody expected it. The Pennsylvanian-age bedrock here is riddled with solution channels and open joints that transmit water from surface creeks into excavations without warning. We've walked onto sites Monday morning after a weekend storm and found six inches of standing water in a supposedly dry cut. Beyond the obvious safety hazard, unmonitored groundwater erodes the shale interbeds, undermining limestone blocks that can slab off overnight. If the excavation support system isn't instrumented, you learn about this from a crack in the sidewalk fifty feet away. With continuous piezometer data and weekly inclinometer profiles, we catch the trend before the failure, letting the contractor adjust dewatering or add tiebacks while the schedule still has room to move.
Relevant standards
ASTM D7299 – Standard Practice for Verifying Performance of Inclinometers, ASTM D1586 – Standard Penetration Test (SPT) for subsurface correlation, IBC Chapter 33 – Safeguards During Construction, including excavation monitoring thresholds, ASCE 7-22 – Minimum Design Loads, relevant for surcharge effects on retaining systems
Associated technical services
Deep Excavation Instrumentation Package
Inclinometer casings, vibrating wire piezometers, and survey prisms installed along soldier pile or secant walls. We establish baseline readings before excavation starts and deliver daily plots showing deflection, groundwater level, and settlement trends against your design thresholds.
Adjacent Structure Risk Monitoring
Crack meters, tiltmeters, and automated total station arrays on buildings within the zone of influence. We flag movement that exceeds trigger values so the project team can act before the building owner calls the city inspector.
Typical parameters
Quick answers
How early should we involve monitoring on a Kansas City excavation?
Bring us in during the shoring design phase. We need to review the geotechnical baseline report and the structural drawings to place instruments where they actually matter—at the maximum bending moment depth, at the contact between limestone and shale, and where adjacent utilities cross the influence zone. Instruments installed after excavation starts miss the initial movement that tells you the most.
What instruments are most critical for a cut in Kansas City limestone?
Inclinometers are non-negotiable—they capture wall deflection with depth. Pair them with vibrating wire piezometers because the limestone-shale contact is often a groundwater conduit. If the excavation is near occupied buildings, add automated total station monitoring with prisms on the facade. For cuts deeper than 30 feet, we add load cells on tiebacks to verify anchor performance.
How quickly can you respond if an inclinometer shows movement above the threshold?
We set trigger values at 50% and 80% of your design deflection limit. At 50%, we increase reading frequency and notify the project engineer. At 80%, we're on the phone immediately—we've had cases where we caught a failing tieback at 9 p.m. on a Thursday and the contractor had the remedial anchor installed by Saturday morning. The system works because we don't wait for the Monday meeting.
What does geotechnical excavation monitoring cost for a typical Kansas City project?
Instrumentation and monitoring for a single excavation wall typically ranges from $780 to $2,730 depending on depth, number of instruments, and monitoring duration. A 40-foot cut with three inclinometer casings, six piezometers, and daily reporting spans the upper end. We provide a fixed-price proposal after reviewing your drawings and site geology.
Is monitoring required by Kansas City building code?
Chapter 33 of the IBC, which Kansas City enforces, requires monitoring when excavations exceed certain depths or affect adjacent structures. Beyond code minimum, most geotechnical engineers specify instrumentation in the project specifications because the Missouri River valley soils are unpredictable. We document compliance with ASTM D7299 for inclinometer practice, which covers your liability if a claim arises.
