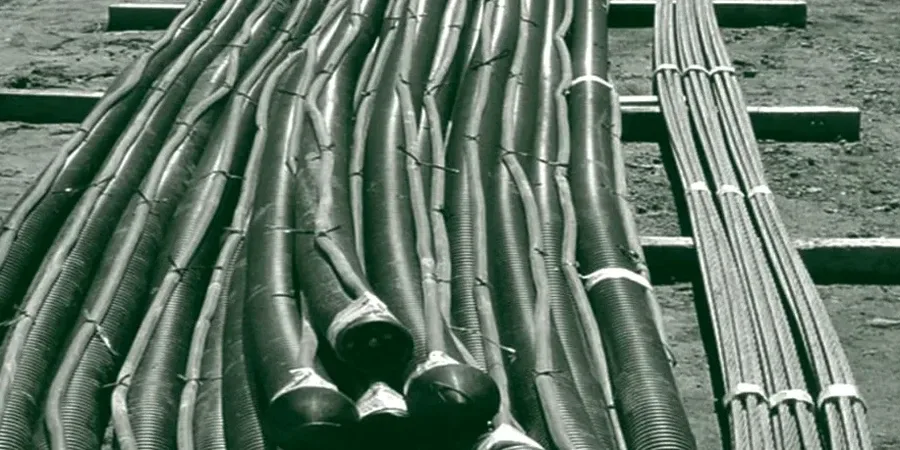

Designing a retaining system in Kansas City means reading the land beneath the surface—and that story changes dramatically between the limestone-ledged bluffs of Quality Hill and the deep alluvial clays of the West Bottoms. Where one site offers near-ideal bond in weathered shale, another demands long tendon lengths to reach competent bearing strata below soft, compressible floodplain deposits. Our anchor design work starts with that local geology because an active anchor grouted into shale performs fundamentally differently from a passive bar driven through stiff residual clay. We combine in-situ permeability testing where groundwater complicates bond stress and triaxial strength analysis on Shelby tube samples to confirm the shear envelope that governs grout-to-ground friction. With Kansas City’s freeze-thaw cycles and seasonal moisture swings in expansive Pennsylvanian-age soils, tendon corrosion protection and long-term creep behavior become engineering priorities, not afterthoughts.
Anchor capacity in Kansas City is rarely a tendon problem—it is a bond zone problem defined by the shale bedding dip and the groundwater regime.
Our approach and scope
Local considerations
At 910 feet above sea level, Kansas City’s topography creates natural drainage paths that concentrate groundwater along the same shale-limestone contact where most anchors find their bond. When a 2016 excavation near the Country Club Plaza encountered perched water at 12 feet, the original passive anchor design had to be revised to active post-tensioning after our cpt-test pore pressure readings revealed effective stress conditions far lower than assumed. The biggest risk in this metro is not anchor rupture but grout-to-ground interface failure triggered by water softening the bond zone during the service life of the structure. Our design approach accounts for the site-specific groundwater response observed during drilling—because a dewatered excavation today does not guarantee a dry bond zone ten years from now, especially in the Pennsylvanian cyclothem sequences that underlie much of Jackson County.
Relevant standards
IBC Chapter 18 (Soils and Foundations), PTI DC35.1-14 (Recommendations for Prestressed Rock and Soil Anchors), FHWA GEC No. 4 (Ground Anchors and Anchored Systems), ASTM A416 (Steel Strand, Uncoated Seven-Wire for Prestressed Concrete), ASCE 7 (Minimum Design Loads and Associated Criteria)
Associated technical services
Anchor Load Testing and Verification
We perform performance, proof, and extended creep tests on production anchors across Kansas City job sites, verifying that the load transfer matches the design assumptions and that residual movement stays within IBC acceptance limits.
Bond Zone Shear Strength Analysis
Using triaxial and direct shear testing on rock core and undisturbed soil samples from the anchor bond depth, we determine the drained and undrained shear strength parameters that control grout-to-ground friction in local Pennsylvanian formations.
Corrosion Risk Assessment
We measure soil resistivity, pH, and sulfate content at anchor borehole depths across the metro to assign the correct PTI corrosion protection class, preventing premature tendon degradation in Kansas City's variable groundwater chemistry.
Typical parameters
Quick answers
What is the difference between active and passive anchors for a Kansas City retaining wall?
Active anchors are tensioned against the wall immediately after grout curing, which compresses the retained soil and limits lateral movement from the start—essential when protecting adjacent structures in dense Kansas City neighborhoods. Passive anchors are not prestressed; they engage only when the wall deflects enough to stretch the tendon. Passive systems work well for temporary cut slopes in open areas, but for permanent walls along property lines, the movement required to mobilize passive resistance often exceeds allowable settlement tolerances, making active prestressing the more conservative choice under IBC Chapter 18.
How much does anchor design and testing cost for a typical Kansas City project?
For a single anchor system including subsoil investigation, laboratory shear strength testing, design calculations, and on-site proof testing, the cost typically ranges from US$970 to US$3,460 depending on the number of anchors, the depth to competent bond strata, and the corrosion protection class required. Multi-anchor shoring projects with extended creep testing fall toward the upper end of that range due to the additional instrumentation and monitoring hours involved.
What soil conditions in Kansas City affect anchor bond strength the most?
The contact between weathered shale and overlying stiff clay creates the most variable bond conditions in the metro. When the shale bedding dips toward the excavation, water can migrate along the bedding planes and reduce effective stress at the grout-to-ground interface. We have also seen significant bond reduction in the fat clays of the West Bottoms, where high plasticity indices demand longer bond lengths to distribute the load without excessive creep under sustained tension.
Which ASTM standard governs anchor testing procedures?
While ASTM A416 covers the steel strand material properties, the testing procedures for ground anchors in the United States follow the Post-Tensioning Institute's PTI DC35.1-14 recommendations and the FHWA Geotechnical Engineering Circular No. 4. These documents specify the loading increments, hold durations, and acceptance criteria for performance, proof, and creep tests that we execute on Kansas City job sites to satisfy IBC and local building official requirements.
