Soil Liquefaction Analysis in Kansas City: What Builders & Developers Must Know

Kansas City sits on a complex patchwork of Missouri River alluvium, glacial till, and thick loess deposits—over 20 feet of wind-blown silt in some bluff areas. The USGS seismic hazard maps show a moderate but real shaking potential here, with peak ground accelerations around 0.05–0.10g for a 2,475-year return period. That combination of loose, saturated alluvial sands and silts near the Missouri and Kansas Rivers can trigger cyclic mobility and flow failure during an earthquake. A proper soil liquefaction analysis is not a speculative exercise in the KC metro; it is a requirement under IBC Chapter 18 when the water table sits within 50 feet of grade and the site class falls into D, E, or F. We run the full workflow: Standard Penetration Test data from our drilling crews, fines content from the lab, and the simplified Seed-Idriss procedure to calculate the factor of safety against liquefaction at each critical depth. For sites with expansive fat clays over sand layers, we often combine the analysis with a CPT test to get continuous tip resistance and sleeve friction, which avoids sample disturbance in thin, critical seams.

Liquefaction in Kansas City is a low-probability, high-consequence hazard—ignoring it on a riverfront site can trigger differential settlement that costs more than the entire geotechnical investigation.

Our approach and scope

Kansas City’s growth pattern—spreading north of the river into the Platte County bottoms and south into Johnson County’s shale-limestone terrain—means developers keep pushing into areas where the subsurface profile changes sharply over a few hundred feet. Back in the 1950s, the flood protection levee system reshaped land use in the Central Industrial District, placing warehouses and rail terminals directly over Holocene alluvium that nobody assessed for seismic risk at the time. Today’s renovation and infill projects on those old industrial lots demand a liquefaction study that goes beyond a check-the-box report. Our approach integrates SPT-based cyclic stress ratio calculations with laboratory grain-size distributions per ASTM D2487 and Atterberg limits to confirm whether fines behave plastically enough to suppress pore pressure buildup. We also evaluate post-liquefaction volumetric reconsolidation settlement using the Tokimatsu-Seed method, a critical number for slab-on-grade structures and approach embankments. When the analysis flags marginal layers, we might recommend a companion MASW survey to map shear wave velocity across the site—helpful for refining the site classification and identifying hidden paleochannels that worsen lateral spreading.

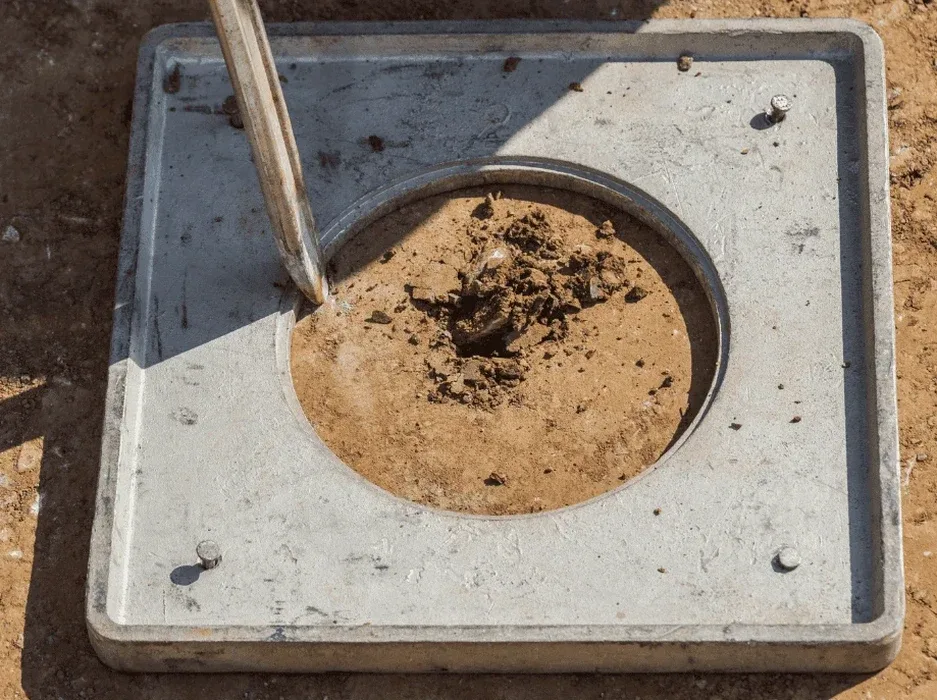

Soil Liquefaction Analysis in Kansas City: What Builders & Developers Must Know

Local considerations

The sharp contrast between KC’s humid subtropical summers and its frozen winter ground creates a seasonal risk cycle that complicates liquefaction evaluations. In spring, the Missouri River swells and the water table rises into the upper sand layers of the alluvial plain—exactly the condition that maximizes pore pressure development during shaking. A site that tests stable in August, when groundwater drops 3 feet, might fail the liquefaction trigger check in April. Because of this, we time our field investigations to capture the shallowest measured water table within a typical year, or we conservatively assume the groundwater could reach the finished grade during a 100-year flood event coincident with the design earthquake. That is not paranoia; it is standard practice under ASCE 7-22 Section 11.8.3. Another local risk factor is the loess-bluff instability in older neighborhoods like Quality Hill. Loess is not typically liquefiable, but a saturated silt layer beneath it can lose strength and slide, dragging the overlying bluff with it—a failure mode observed in other Mississippi Valley seismic zones and relevant for any retaining structure taller than 6 feet along the river bluffs.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering1.org

Relevant standards

ASCE 7-22 Minimum Design Loads and Associated Criteria for Buildings and Other Structures, IBC 2021 (International Building Code) Chapter 18: Soils and Foundations, ASTM D1586 / D1586M-18 Standard Test Method for Standard Penetration Test (SPT) and Split-Barrel Sampling of Soils, ASTM D2487-17 Standard Practice for Classification of Soils for Engineering Purposes (Unified Soil Classification System), Youd, T.L., and Idriss, I.M. (2001) Liquefaction Resistance of Soils: Summary Report from the 1996 NCEER and 1998 NCEER/NSF Workshops

Associated technical services

01

SPT-Based Liquefaction Screening

Drilling with automatic trip hammer to recover split-spoon samples at 2.5-foot intervals in the upper 50 feet. We run lab tests for fines content and plasticity to correct the CRR, then deliver a depth-profile report with factors of safety and settlement estimates under the design earthquake. This is the most cost-effective approach for mid-size commercial buildings and industrial expansion pads in the East Bottoms and Riverside areas.

02

CPT & Seismic Cone Refinement

For sites with highly stratified sands and silts—common in the Kansas River valley—a standard drill rig can miss thin liquefiable seams. We deploy an electronic cone with pore pressure transducer to capture nearly continuous tip resistance and friction ratio profiles. When paired with a seismic cone, it yields Vs profiles for site classification and CRR calculation without sample disturbance, following the Robertson & Wride (1998) CPT-based method.

Typical parameters

ParameterTypical value
Analysis MethodSimplified procedure per Seed & Idriss (1971), updated by Youd et al. (2001)
Field Test Data SourceSPT N-values (ASTM D1586) or CPT tip resistance & sleeve friction (ASTM D5778)
Cyclic Stress Ratio (CSR)Calculated at each 1.5-foot interval using site-specific PGA and depth
Cyclic Resistance Ratio (CRR)Corrected for overburden, hammer energy, borehole diameter, and fines content
Factor of SafetyFS = CRR / CSR; minimum acceptable FS typically 1.1–1.3 per IBC
Post-Liquefaction SettlementVolumetric strain estimated via Tokimatsu & Seed (1987) or Ishihara & Yoshimine (1992)
Lateral Spreading AssessmentEmpirical displacement models (Youd, Bartlett, Rauch) for free-face and gently sloping ground

Quick answers

Does Kansas City building code actually require a liquefaction analysis?

It depends on the site class and the mapped spectral accelerations. Under IBC Section 1803.5.12, a geotechnical investigation must assess liquefaction potential when the design peak ground acceleration exceeds 0.10g and the groundwater table is within 50 feet of the ground surface. While much of Kansas City falls below that PGA threshold, sites in the Missouri River floodplain with loose sands and a water table at 15–20 feet often trigger the requirement. The local building official has the final say, and many plan reviewers in KCMO and Wyandotte County now request the analysis as a standard submittal for any structure in Seismic Design Category C or higher.

How much does a liquefaction study cost in the Kansas City area?

A complete liquefaction analysis—including two to three SPT borings, laboratory fines content and Atterberg limits, and the engineering report with settlement and lateral spread estimates—typically runs between US$2,860 and US$4,370. The range depends on the depth of the investigation, the number of borings required by the site geometry, and whether we need to add CPT soundings for a more refined profile. That figure covers the field work, lab testing, and the signed report; it does not include ground improvement design if the site comes back with failing layers.

What happens if my site fails the liquefaction screening?

A factor of safety below 1.1 does not kill a project; it triggers a mitigation design phase. Depending on the depth and thickness of the liquefiable layer, we evaluate options like vibrocompaction or stone columns to densify the sand, or deep foundations—driven piles or drilled shafts—that bypass the weak zone entirely. For shallow, thin seams, overexcavation and recompaction is sometimes the simplest fix. We provide the post-treatment verification testing and re-run the analysis to confirm the improved ground meets the target factor of safety.

How long does a liquefaction analysis take from start to finish?

For a typical commercial lot in Kansas City, you can expect the field drilling to take one to two days. Laboratory testing for grain size and Atterberg limits adds another five to seven working days. The engineering analysis and report writing usually wrap up within two weeks after the lab data arrives. So a realistic timeline from contract signature to final report delivery is three to four weeks, assuming no weather delays—spring thunderstorms can push rigs off schedule by a few days in the river bottoms.
